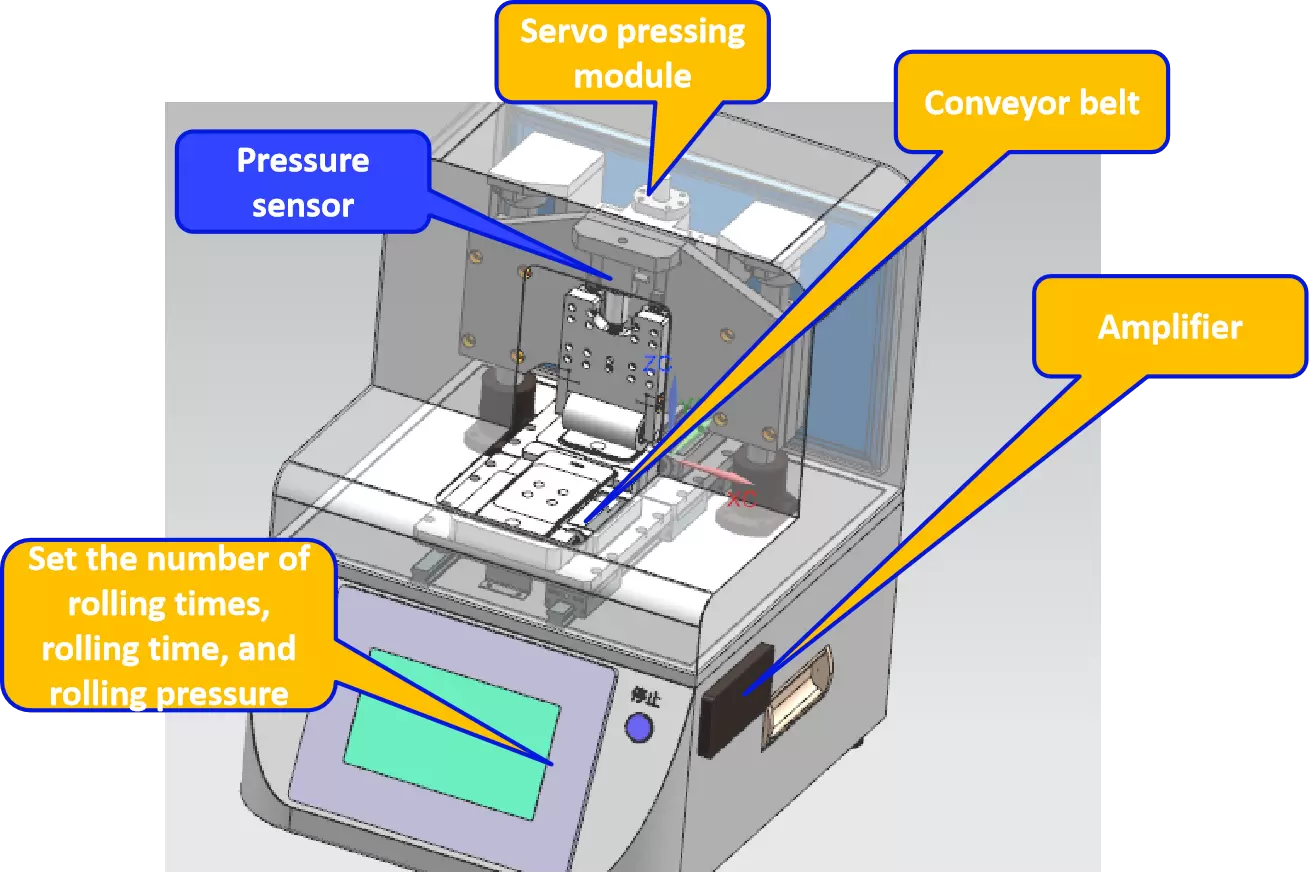

In the manufacturing process of smartphones, the performance and safety of batteries are crucial.Battery rolling is a key step in the battery production process. It changes the internal structure of the battery by applying pressure, which directly affects the battery's capacity, internal resistance and cycle life.In order to accurately control the rolling process and ensure battery quality, more and more mobile phone battery manufacturers choose to use this S-type tension pressure sensor from Ligent Sensor to achieve accurate monitoring and control of rolling pressure.
Advantages of LFS-01B S-type tension and pressure sensor:
LFS-01B S-type tension and pressure sensor can accurately measure the tension and pressure generated during the rolling process, provide real-time force feedback for the rolling equipment, and realize closed-loop control of force value. In the mobile phone battery rolling test, LFS-01B has the following advantages:
1. High-precision measurement: It can accurately measure the force value change during the rolling process, with an accuracy of up to ±0.05%F.S. (non-linearity), ±0.05%F.S. (hysteresis), ±0.05%F.S. (repeatability),This ensures the precision of rolling force control, avoids excessive or insufficient rolling, and guarantees the stability of battery performance.
2. Fast response: The sensor has good dynamic response, with a dynamic response frequency of up to 1000HZ.It can quickly capture real-time force value changes during the rolling process and achieve accurate and fast force value control.
3. Strong stability: Made of stainless steel, it has good corrosion resistance and stability.With an operating temperature range of -20℃ to 80℃, it can work stably for a long time in harsh industrial environments.
4. Easy installation: With S-shaped structural design, LFS-01B is compact and has coaxial mounting holes on both the upper and lower parts,It is easy to install and can be easily integrated into existing rolling equipment.
5. IP65 protection level: With IP65 protection level, it can effectively prevent the intrusion of dust and water, ensuring the reliability of sensor performance.
LFS-01B sensor can provide the following technical support for mobile phone battery rolling test equipment:
Precise force control: By real-time monitoring of the changes in rolling force, it accurately controls the rolling pressure to avoid excessive or insufficient rolling, ensuring the stability of battery performance.
Improve efficiency: Automated rolling equipment can work continuously and stably, greatly improving production efficiency.
Stable quality: Eliminate the influence of human factors to ensure the quality consistency of each battery.
Process Optimization：By collecting and analyzing force data, rolling process parameters can be optimized to improve battery performance.
Equipment Protection: Force value feedback enables timely adjustment of rolling parameters to avoid damage to equipment and batteries.
Effective cost reduction: Due to the reduction of defective products, the production cost of the enterprise has been effectively controlled.

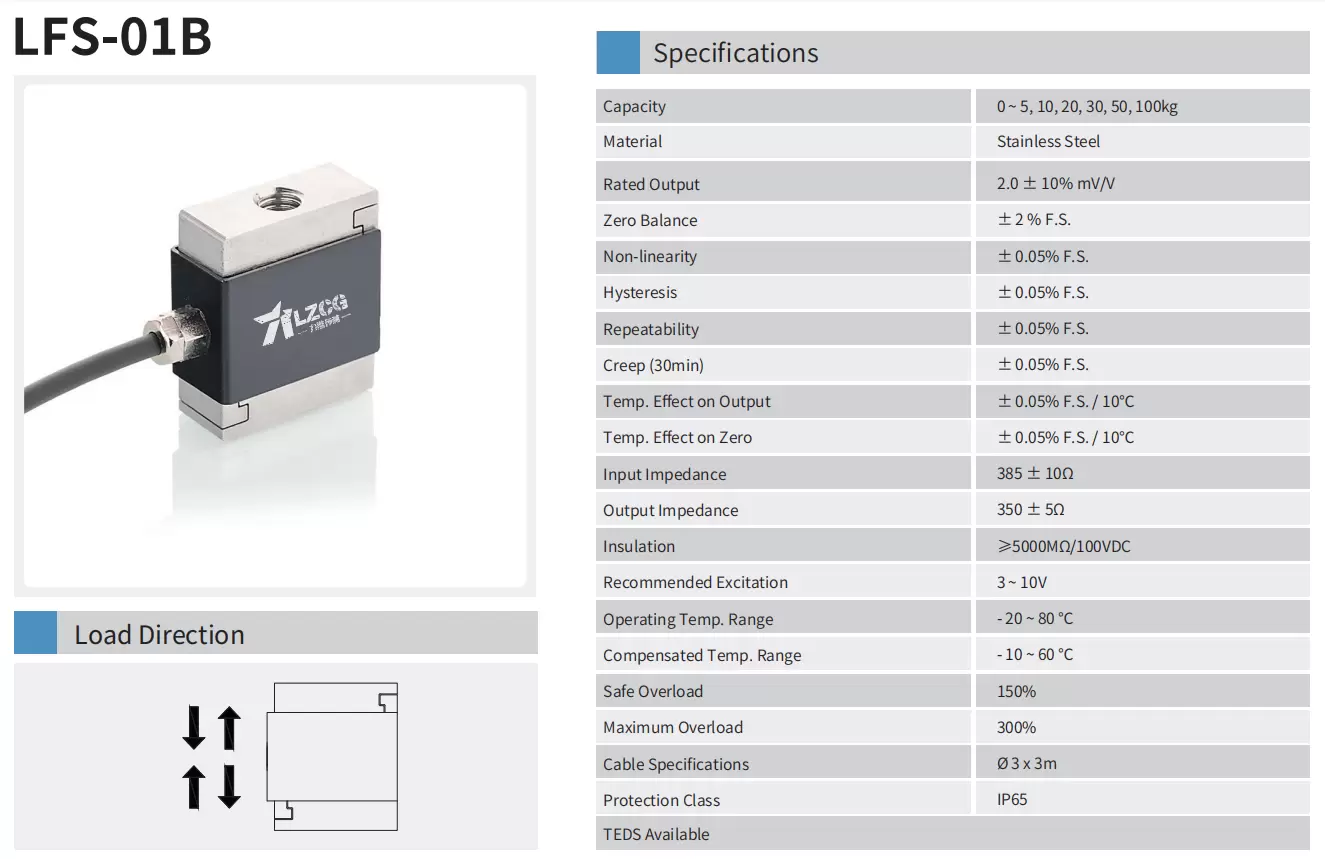

LFS-01B product performance advantages:
The application of LFS-01B S-type tension and pressure sensor in the rolling test of mobile phone batteries is another successful case of Ligent sensor in the field of intelligent manufacturing.By providing high-precision and reliable performance sensor products, Ligent Sensor helps customers achieve precise control of the production process, improve product quality and production efficiency, and create greater value for them.We are committed to offering customers high-quality sensor products and comprehensive technical support, empowering them to stand out in the fierce market competition.
Contact Us
If you are interested in LFS-01B S-type tension and pressure sensor or other Ligent sensor products, please feel free to contact us!We are dedicated to providing you with professional technical advice and solutions.
