LFC-05

1. Structural features: Adopting a diaphragm box or variable cross-section diaphragm box structure,with two metal diaphragms welded to form a sealed cavity.The variable cross-section design uses gradient thickness or special corrugated structure to achieve force value conversion through the elastic deformation of the diaphragm under pressure, thereby optimizing stress distribution.

2. Core advantages: The overall structure is extremely compact and small with a low height, making it suitable for equipment with strict space constraints. It can accurately detect force values and can be directly connected to the control system to achieve closed-loop force control.

3. Installation advantages: Suitable for narrow spaces such as robotic arm joints and headphone touch controls,support multiple installation methods such as slot and screw mounted.

4. Dynamic performance: The dynamic response frequency is lower than 200Hz, which can meet the dynamic force monitoring needs in most scenarios such as industrial automation production lines and medical equipment, ensuring the timeliness and accuracy of data collection.

Download Specification 3D Model Download Online Consultation

Technical features

1.The overall structure is extremely compact and small with a low height, making it suitable for equipment with strict space constraints. It can accurately detect force values and can be directly connected to the control system to achieve closed-loop force control.

2. Suitable for narrow spaces such as robotic arm joints and headphone touch controls,support multiple installation methods such as slot and screw mounted.

3. Dynamic performance: The dynamic response frequency is lower than 200Hz, which can meet the dynamic force monitoring needs in most scenarios such as industrial automation production lines and medical equipment, ensuring the timeliness and accuracy of data collection.

Specifications

Capacity	0 ~ 5, 10, 20, 30kg	Input lmpedance	500 ± 10Ω
Material	Stainless Steel	Output lmpedance	500 ± 10Ω
Rated Output	0 ~ 10kg : 0.5 mV/V 20 ~ 30kg : 1.0 ~ 1.5 mV/V	Insulation	≥5000MΩ/100VDC
Zero Balance	±2% F.S.	Recommended Excitation	3 ~ 5V
Non-linearity	± 0.5% F.S.	Operating Temp. Range	-20~80°C
Hysteresis	± 0.5% F.S.	Compensated Temp. Range	-10~60℃C
Repeatability	± 0.5% F.S.	Safe Overload	120%
Creep (30min)	±0.1% F.S.	Maximum Overload	150%
Temp. Effect on Output	±0.1% F.S./10°C	Cable Specifications	Ø2x3m
Temp. Effect on Zero	+0.1% F.S./10°C	Protection Class	IP64
TEDS Available

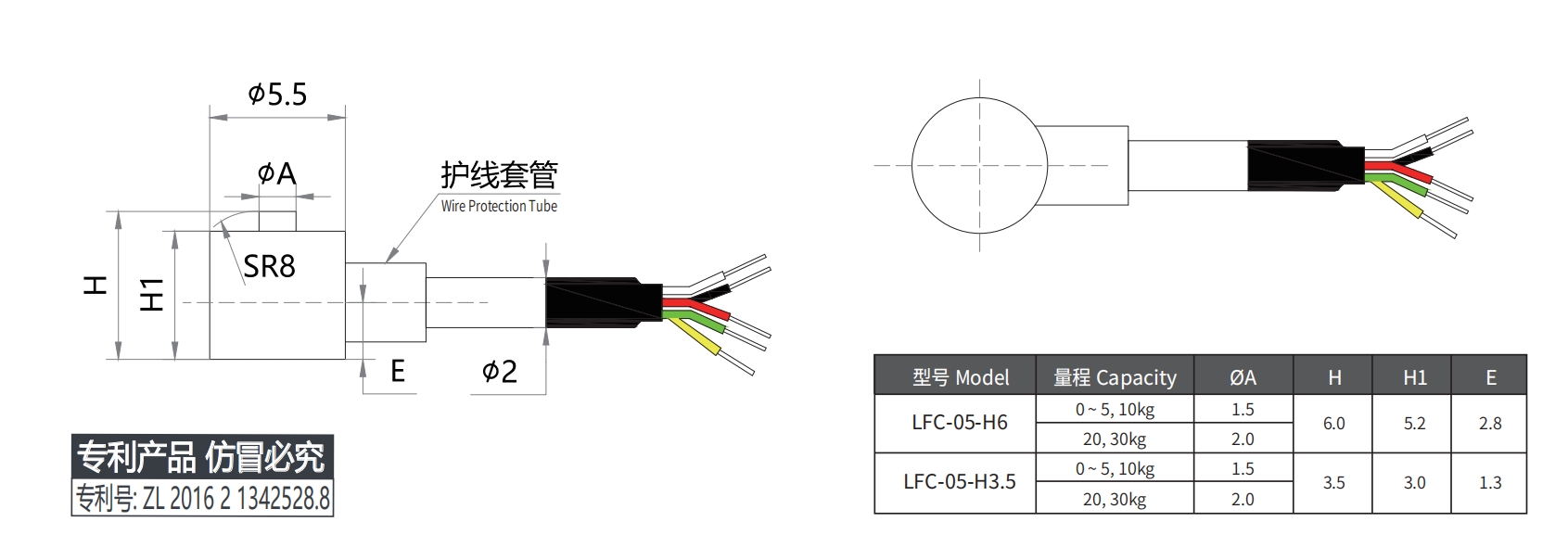

Product Dimension

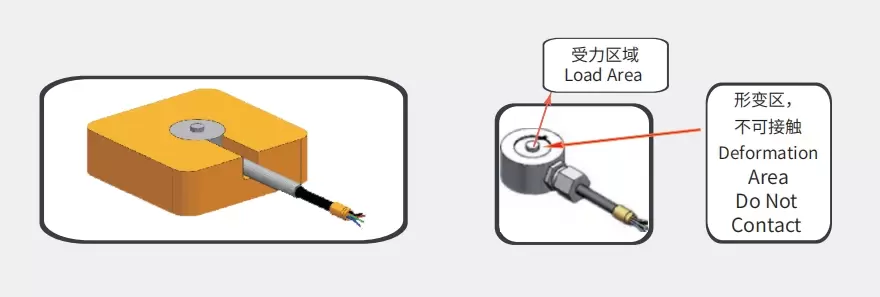

Load Direction

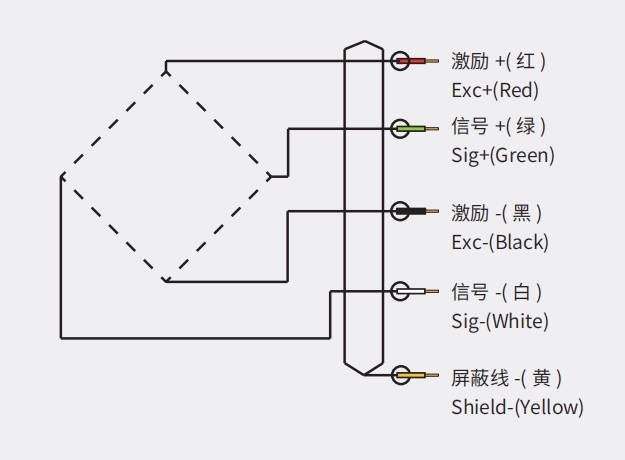

Wiring Diagram

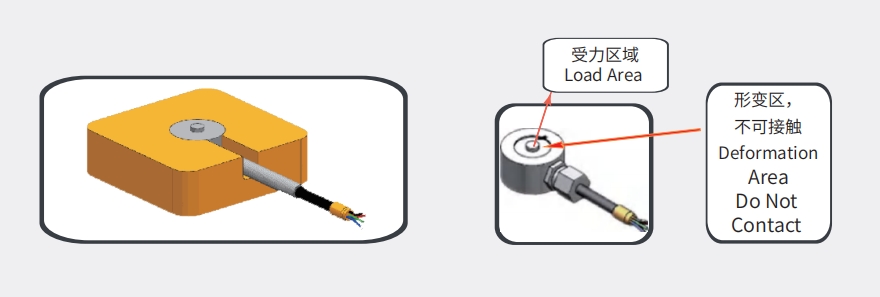

Installation Mode
Slot Mounted

Applications

1. Consumer electronics and electronic industries

Force measurement and control in production of screen mounting, battery mounting, function key assembly(like HOME button etc),seal performance testing, key testing.Force measurement of insertion force, strip tension, pressure equipment, welding and assembly stress strength testing, etc,

2、Injection molding and mold industry

Clamping force measurement and control, Press-in force and assembling gap detection and control .

3、Medical Industries

Force measurement and control of Injection bump, and medical bed.

4、Robots

Grasping force measurement and control of robot fingers, compression or tension,press in force measurement and control.

5、Auto industry

Assembling force, press-in force, polishing and welding force measurement and control.
