L808E

The L808E is a digital transmitter. The L808E digital transmitter is equipped with dual communication interfaces (EtherCAT and Ethernet), and supports up to 16 acquisition channels. Boasting 24-bit precision and a sampling rate range of 10 to 1.2K, this device also integrates the TEDS (Transducer Electronic Data Sheet) function for enhanced usability. For installation flexibility, it is compatible with 35mm guide rail mounting as well as screw fastening (supporting both horizontal and vertical orientations). function.

Download Specification 3D Model Download Online Consultation

Technical features

1. Acquisition channels: 1-16 channels, 24-bit accuracy, 10-1.2K acquisition rate

2. Structure and installation Support 35mm guide rail, screw installation (support horizontal and vertical)

3. Calibration Function:Multiple calibrations modes incl. digital/weights/TEDS/user setting/non-linear, etc.

4. Communication Protocol: CoE, ModbusTCP, ModbusRTU/Active Upload

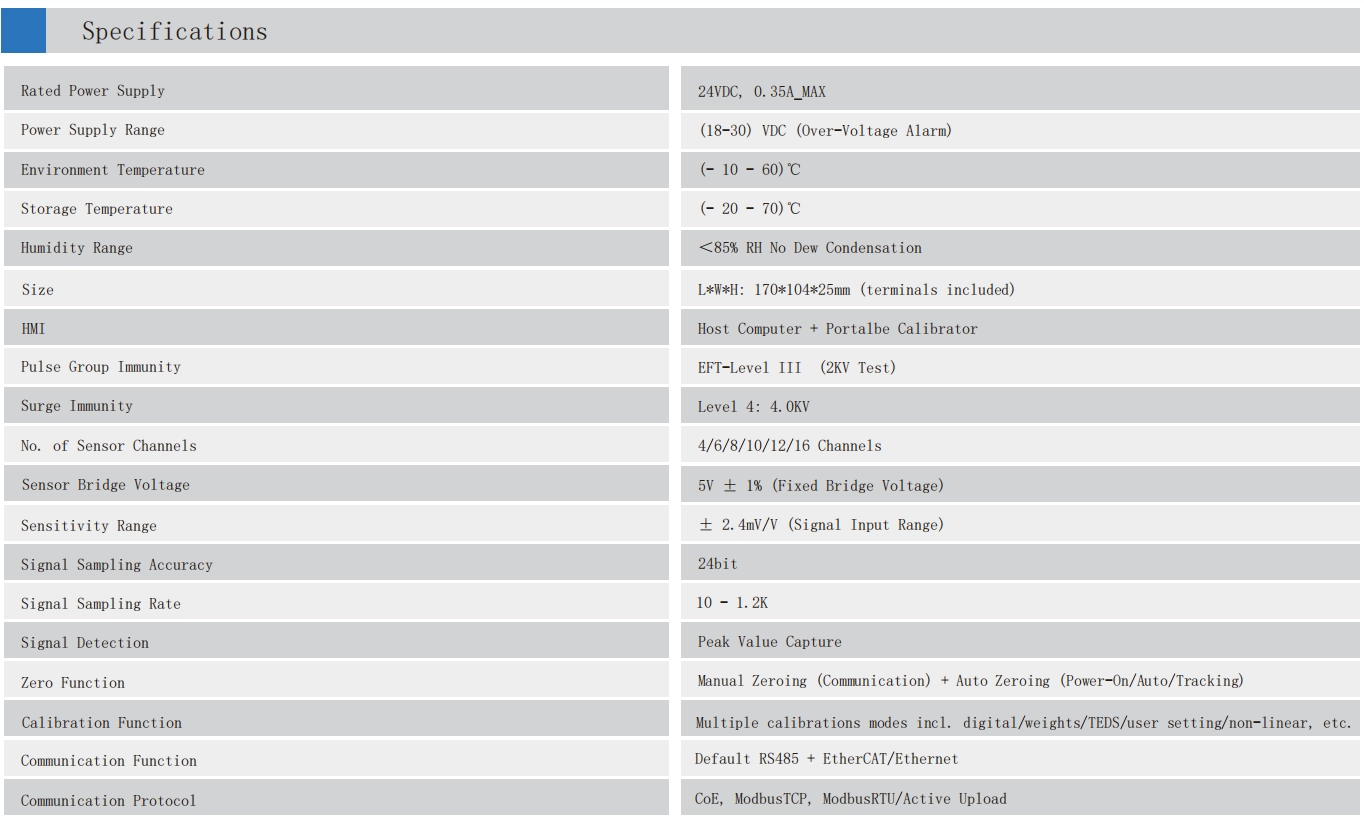

Specifications

Rated Power Supply	24VDC, 0.35A_MAX	Power Supply Range	(18-30) VDC (Over-Voltage Alarm)
Environment Temperature	(- 10 - 60)℃	Storage Temperature	(- 20 - 70)℃
Humidity Range	＜85% RH No Dew Condensation	Size	LWH: 17010425mm (terminals included)
HMI	Host Computer + Portable Calibrator	Pulse Group Immunity	EFT-Level III (2KV Test)
Surge Immunity	Level 4: 4.0KV	No. of Sensor Channels	4/6/8/10/12/16 Channels
Sensor Bridge Voltage	5V ± 1% (Fixed Bridge Voltage)	Sensitivity Range	± 2.4mV/V (Signal Input Range)
Signal Sampling Accuracy	24bit	Signal Sampling Rate	10 - 1.2K
Signal Detection	Peak Value Capture	Zero Function	Manual Zeroing (Communication) + Auto Zeroing (Power-On/Auto/Tracking)
Calibration Function	Multiple calibrations modes incl. digital/weights/TEDS/user setting/non-linear, etc.	Communication Function	Default RS485 + EtherCAT/Ethernet
Communication Protocol	CoE, ModbusTCP, ModbusRTU/Active Upload

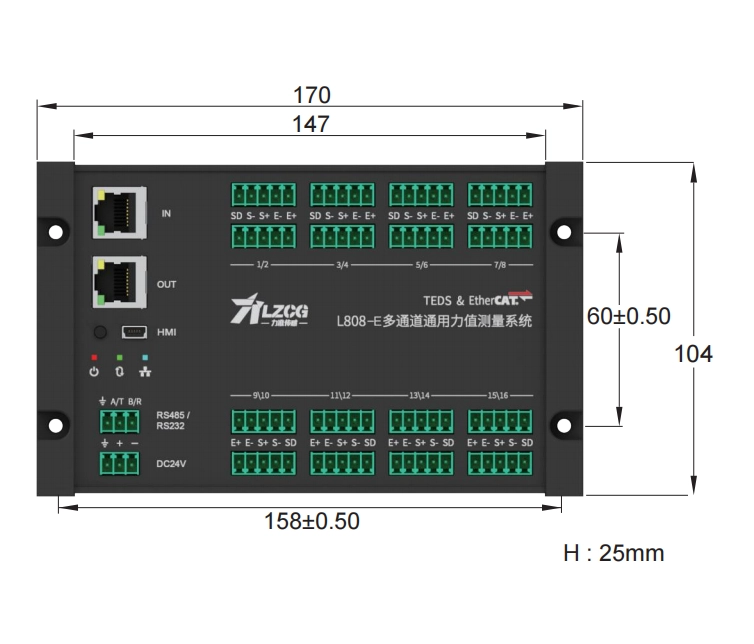

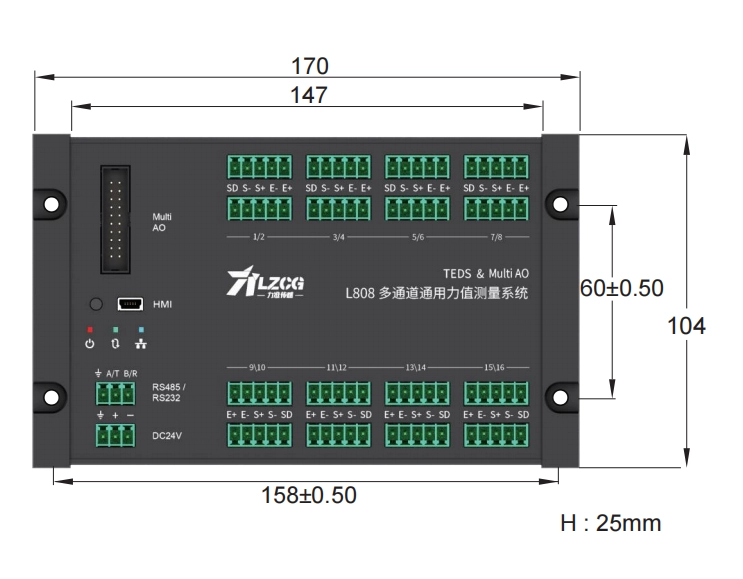

Product Dimension

Other Guide Introduction

Relevant Products

Applications

1.Pressure and flow control:

Hydraulic/pneumatic systems: Equipped with pressure sensors to control the oil pressure of machine tool hydraulic stations (e.g., 3-5MPa) to prevent overloads.

2.Electric equipment monitoring:

Machine tool equipment: monitor cutting force through pressure sensors and control instruments to prevent overload;

Automated production lines: Cooperate with displacement sensors to control the positioning accuracy of robotic arms (e.g., ±0.01mm), ensuring precise execution of processes such as assembly and welding.
