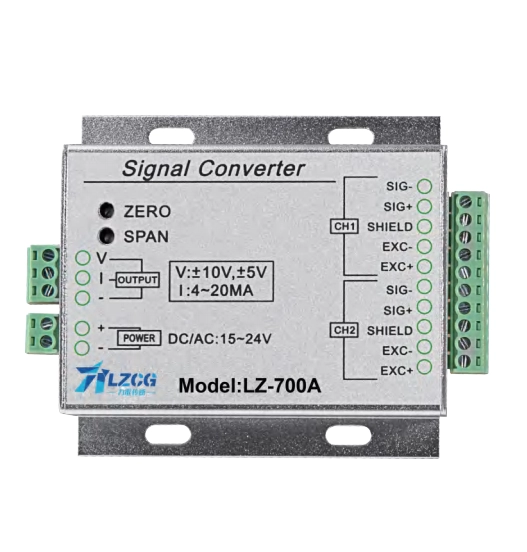

LZ-700A signal transmitter is assembled with aluminum housing and high performance original components.
Transmit and compensate signal while received. Transmitting force signal to standard current /voltage signal, and can directly connect with PLC and other automatic equiptment. Zero and span is adjustable at outside, it has input and output overload protection. LZ-700A has 2 input ports and 1 output port and can connect 2 sensors
.
1. The frequency can be 100HZ or 5000HZ.
2.Multi-output: 0~20mA, 4~20mA, 0~±10V, 0~±5V.
3. Zero and full scale can be adjusted.
4. Good stability and strong anti-interference.
| Power Supply | DC 18~30V | Accuracy | ＜±0.05% |
| Input Signal | 0.4 ~ 6mV/V | Excitation Voltage | 5VDC±2%, 100mA |
| Current Output | 0~20mA / 4-20mA | Voltage Output | 0~±5V / 0~±10V |
| Drive Capability | 4pcs 350Ω load cell | Dimensions | 82 x 76 x 24mm |
| Operation Environment | -30~60℃,≤85%RH | Dynamic Frequency | 100Hz / 5000Hz (option) |

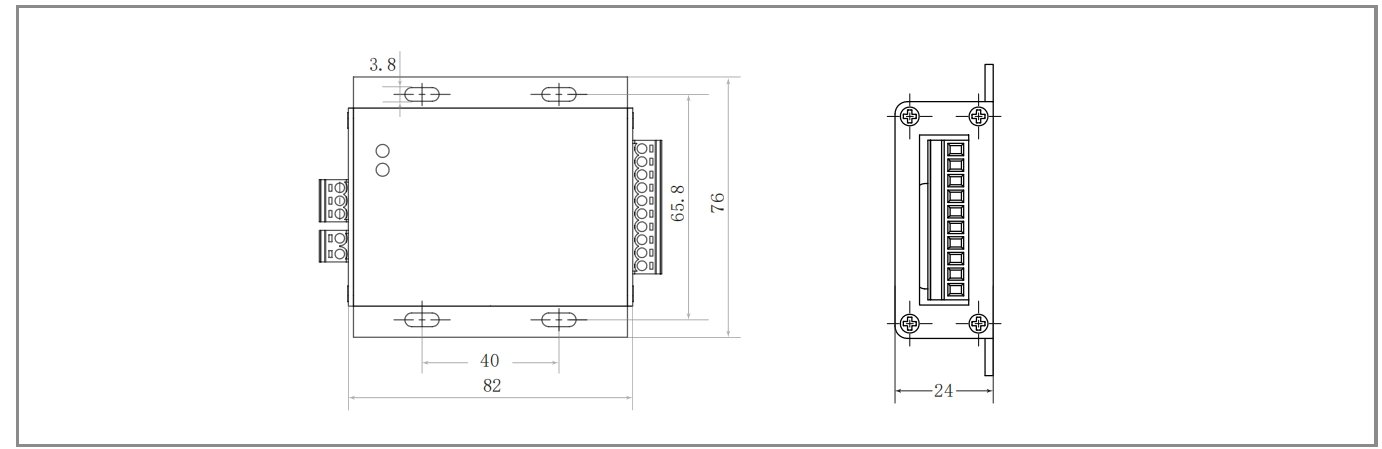

Product Dimension

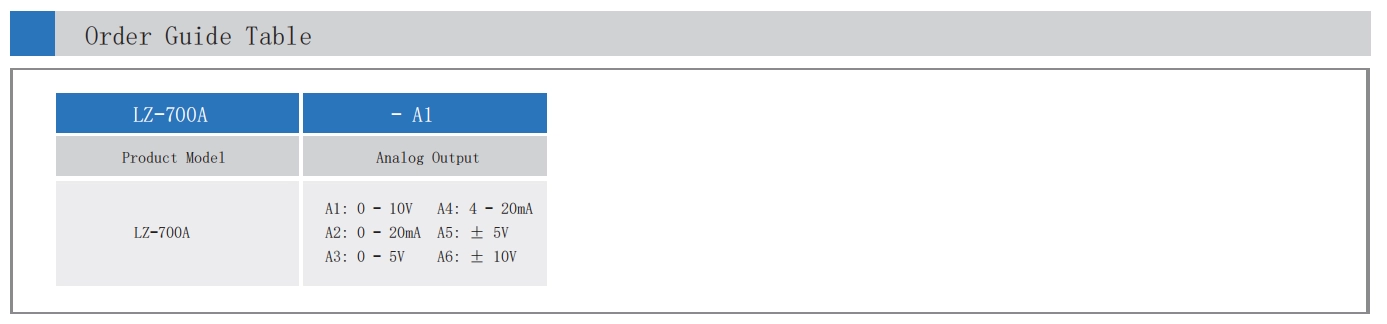

Other Guide Introduction
1.Pressure and flow control:
Hydraulic/pneumatic systems: Equipped with pressure sensors to control the oil pressure of machine tool hydraulic stations (e.g., 3-5MPa) to prevent overloads.
2.Electric equipment monitoring:
Machine tool equipment: monitor cutting force through pressure sensors and control instruments to prevent overload;
Automated production lines: Cooperate with displacement sensors to control the positioning accuracy of robotic arms (e.g., ±0.01mm), ensuring precise execution of processes such as assembly and welding.
