Why Load Cell Signal Amplifiers are Crucial for Ac

In the world of force measurement, ensuring the integrity of signals is import. Load cell amplifiers play a crucial role in guaranteeing that the tiny signals from load cells are accurately amplified, allowing for precise measurements in various applications like industrial automation, medical devices, and aerospace testing. At Shenzhen Ligent Sensor Tech Co., Ltd., we have over 40 years of experience in designing and manufacturing high-performance load cell amplifiers, transmitters, and digital control indicators that ensure the best possible signal accuracy.

Understanding Load Cell Signals

Load cells are sensors that measure force, and they typically output low-voltage in the millivolt(mV) range that correspond to the force or weight applied. These signals, while accurate, are very weak and prone to interference from noise, temperature changes, and long-distance transmission issues. Without proper signal conditioning, these minute signals can not provide reliable or actionable data.

Why Do You Need a Load Cell Amplifier?

A load cell amplifier is designed to boost these small mV-level signals into more robust voltage or current signals that can be interpreted by data acquisition systems (DAQ), microcontrollers, or PLCs. Essentially, amplifiers help bridge the gap between raw data and actionable information, ensuring accurate force measurement and control.

At Ligent Sensor, we provide an array of load cell amplifiers, including digital transmitters and digital control indicators, designed for seamless integration into automated systems.

Signal Conditioning: More than Just Amplification

A load cell amplifier does more than just amplify signals; it also conditions them. Signal conditioning involves:

Filtering: Removes noise to ensure signal purity.

Offset Correction: Compensates for any signal drift.

Temperature Compensation: Accounts for environmental temperature changes that could affect signal accuracy.

Analog-to-Digital Conversion: Converts analog signals into digital form for better data interpretation.

These processes are essential for maintaining the quality and precision of measurements in industries where accuracy is vital.

The Key Benefits of Using Load Cell Amplifiers

1.Improved Signal Integrity

The primary benefit of using a load cell amplifier is enhanced signal integrity. The amplifier filters out noise, compensates for temperature effects, and ensures that every tiny fluctuation in force is measured accurately, reducing errors in your data.

2.Enhanced Range and Resolution

By amplifying the signal to the full capacity of the analog-to-digital converter (ADC), the system can achieve greater resolution, which is especially important in high-precision applications such as robotics, pharmaceutical dosing, and high-end industrial automation.

3.Long-Distance Signal Transmission

Long cable runs can degrade load cell signals. Without amplification, the signal strength decreases, leading to inaccuracies. However, amplified signals, especially those using current loop outputs like 4-20mA, are more resilient and less prone to electromagnetic interference, making them ideal for long-distance transmission.

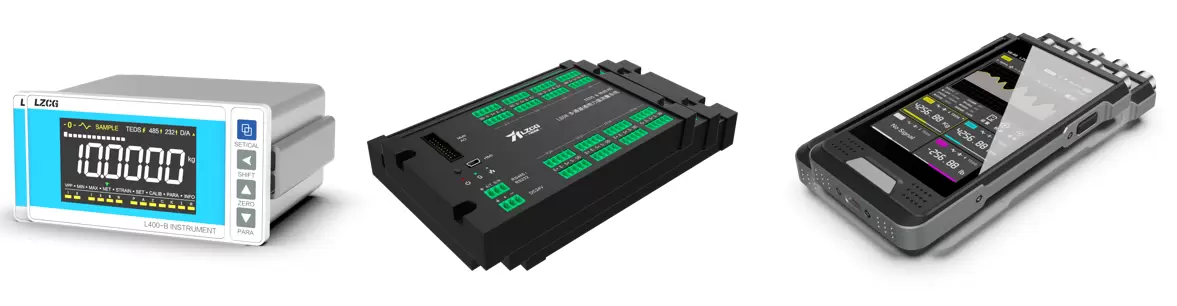

Types of Load Cell Amplifiers We Offer

●Analog Amplifiers:

This instrument uses high-precision analog circuitry to linearize and amplify sensor signals, directly outputting standard analog signals (e.g., 0-10V/4-20mA). With excellent response speed and simplified circuit design, it is an ideal solution for high-speed dynamic weighing and cost-sensitive industrial automation, especially for direct signal integration with PLC/DCS systems.

●Digital Amplifiers/Transmitters:

Based on analog signal processing architecture, it integrates high-resolution ADC and embedded control units to achieve signal digitization and standardized protocol outputs (RS485/CAN/Ethernet). With multi-point networking and remote monitoring capabilities, it adapts to multi-sensor system integration in complex industrial environments, offering superior anti-interference and data management compared to traditional analog solutions.

●Digtal Control Indicator:

Building on digital transmitters, this instrument integrates functions such as human-machine interface, logic control (DI/DO), comparison output, peak capture, and creep tracking. It supports industrial protocols like Modbus/TCP and EtherCAT, making it suitable for real-time control scenarios like batch filling and process alarms. It enables seamless integration into automation lines for assembly, sorting, and testing, providing complete closed-loop control from "sensing - decision-making - execution."

●Portable Dynamometer:

Featuring low-power hardware and modular communication design (optional), this instrument is equipped with a high-visibility backlit screen and user-friendly interface. It supports multiple languages and is specifically designed for equipment calibration and mobile weighing. Its compact body and shock-resistant design ensure efficiency in field calibration and mobile testing, especially in environments requiring frequent changes in measurement locations.

Key Parameters When Choosing a Load Cell Amplifier

When selecting a load cell amplifier, consider the following factors:

●Gain Range: Ensure that the amplifier can scale the signal properly for your application.

●Noise Floor: A lower noise floor improves measurement accuracy, especially for high-precision tasks.

●Input/Output Compatibility: Match the amplifier to your system’s voltage levels and interface requirements.

●Linearity and Stability: For long-term accuracy, stability is essential.

Amplification

●Industrial Automation: In robotic arms or production lines, load cell amplifiers convert mechanical stress data into precise digital control signals.

●Medical Devices: Applications like infusion pumps and prosthetics demand consistent, noise-free measurements for safety and reliability.

●Aerospace and Automotive Testing: These industries require highly accurate and stable data to test components under extreme conditions, which load cell amplifiers can provide.

●3C Manufacture Testing Equipment:In the production process of 3C electronic products, testing equipment needs to accurately detect the pressure variations of various components.

FAQs

1.What happens if I don’t use a load cell amplifier?

Without amplification, the signal from a strain gauge is too weak and noisy for accurate measurement. The data would be unreliable, potentially rendering it unusable.

2.Can I use any amplifier with any load cell?

Not all amplifiers are compatible with every load cell. It’s crucial to match the amplifier’s specifications with the load cell’s output signal, excitation voltage, and impedance. For optimal results, choose a matched system like those offered by Ligent Sensor.

3.Final Thoughts: Amplify Accuracy with the Right Tools

The accuracy of your measurement system depends on every component working flawlessly. Load cell amplifiers from Ligent Sensor ensure that your system performs at its best, delivering precise and actionable data for critical applications. Whether you are involved in industrial automation, medical devices, or aerospace testing, don’t underestimate the importance of quality signal amplification.

By choosing Ligent Sensor, you are investing in proven technology that guarantees accuracy and reliability—making your force measurement systems more effective and efficient.
