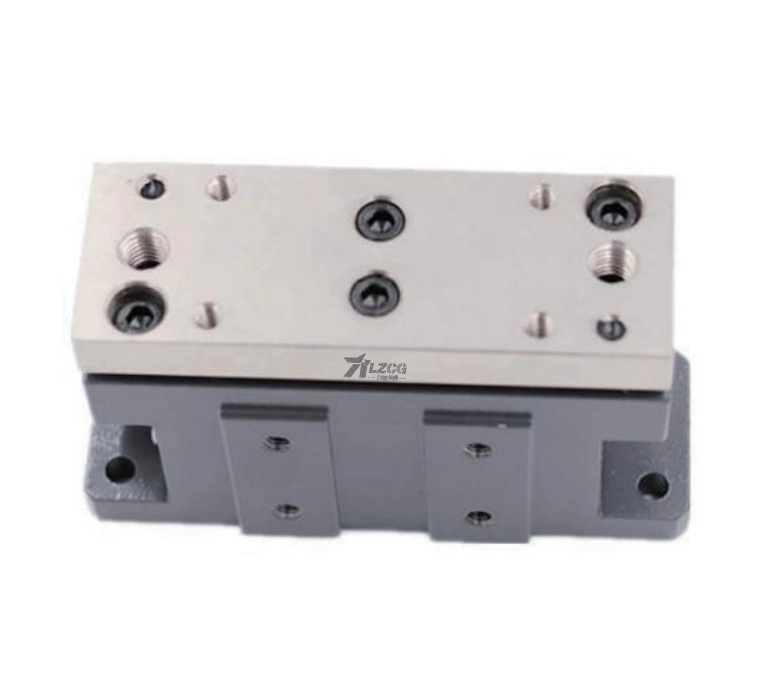

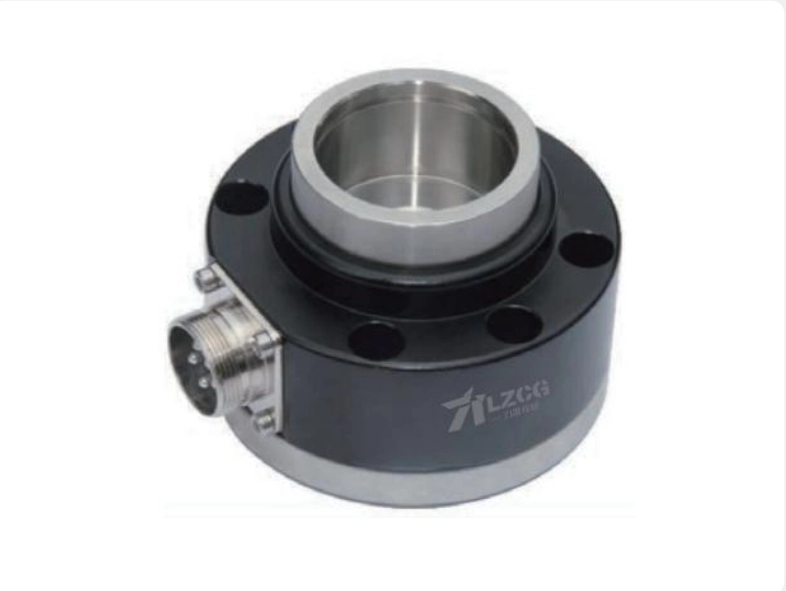

LFZ-104

1. Structural features: High-precision tension measurement for cables, wires, films & belts；Stable performance with low signal drift, reliable real-time monitoring ； Compact modular design, space-saving & easy for maintenance

2. Core advantages: Wide tension range adaptation, compatible with diverse linear materials；High measurement accuracy, ensuring stable production quality；Durable construction, long service life in industrial working conditions

3.Installation advantages: Simple mounting, direct alignment with tensioned materials；Compact size, fits limited installation spaces in production lines

Download Specification 3D Model Download Online Consultation

Technical features

1.Fast dynamic response, stable and reliable for long-term operation.

2.Adopting the resistance strain gauge principle, it features stable performance, high precision and built-in overload protection.

3.Stable output signal with strong anti-interference capability.

4.High repeatability precision without hysteresis.

Specifications

Capacity	10~50kg	Input lmpedance	380 ± 30Ω
Material	Stainless Steel	Output lmpedance	350 ± 2Ω
Rated Output	2.0 mV/V	Insulation	≥5000MΩ/100VDC
Zero Balance	± 2 % F.S.	Recommended Excitation	5 ~ 12V
Non-linearity	≤ 0.1% F.S.	Operating Temp. Range	- 30 ~ 80 ℃
Hysteresis	≤ 0.1% F.S.	Compensated Temp. Range	- 10 ~ 60 ℃
Repeatability	≤ 0.05% F.S.	Safe Overload	150%
Creep (30min)	≤± 0.05% F.S.	Maximum Overload	200%
Temp. Effect on Output	± 0.018% F.S. / 10℃	Cable Specifications	Ø 3 x 3m
Temp. Effect on Zero	± 0.016% F.S. / 10℃	Protection Class	IP65
TEDS Available

Product Dimension

Applications

1、 Printing Industry

Applied to printing machines for real-time tension control of printing materials like films and paper rolls, ensuring uniform ink application and consistent printing quality.

2、Coating & Laminating Industry

Used on coating and laminating machines to stabilize the tension of substrates and composite films, preventing wrinkles or uneven coating during production.

3、Die-cutting Industry

Integrated with die-cutting machines to maintain precise tension of processed materials, improving die-cutting accuracy and reducing material waste.

4、Paper-making Industry

Installed on paper machines for monitoring and adjusting the tension of paper webs in the production process, ensuring smooth operation and uniform paper thickness.

5、Wire & Cable Industry

Applied to cable manufacturing lines to control the tension of wires, cables and insulation layers, avoiding stretching or breakage during drawing and winding. force, polishing and welding.
