LT-103 is mainly used in torque measurement of low capacity (under 2 NM).When measuring torque values is less than 2 Nm, the friction torque of revolving support bearing can’t be ignored as the main interference factors. Our LT-103 ‘s strain area and power supply, and launching region are separated, and make strain area to avoid the influence of the bearing, which effectively improve and enhance the overload resistance and measurement accuracy of torque sensor.
1.Both static torque and rotated torque can be measured.
2.High Accuracy, Good stability, Strong anti-interference
3.Small Volume, Low weight, easy to install
5.Without Collecting ring wear parts, can rotate with high speed for long time
6.0verload up to 150% FS
7.Strong anti-interference, can be installed at any position and direction
8.Sensor part can be used separately without indicator ,and it can be connect with PLC, DCS Collecting Card as torque measuring device.
| Capacity | 0.05Nm、0.1Nm、0.2Nm、0. 5Nm、1Nm、2Nm | Power Supply | ±15V DC for Frequency output signal、 24V DC for Voltage or Current Output |
| Torque Signal | 5～15Khz（Range 12V,Zero 10kHz）、 4～20mA、 1～5V、0-10V（option） | Speed Capacity | 0～1000、3000、6000、8000r.p.m |
| Speed Signal | 60 Pulse/revolution (without accumulated error, range 12VDC) 4-20mA 1-5V | Accuracy | ±0.25%、±0.5% |
| Stability per year | 0.3/Year | Recommended Excitation | 3~ 10V |
| Non-linearity | ± 0.3% F.S. | Insulation | ≥200MΩ(100VDC) |
Environment Temperature | -20～60℃( Can custom -20～120℃) | Relative Humidity | 0～90%RH |
| Overload | 150% | Response Frequency | 1ms |

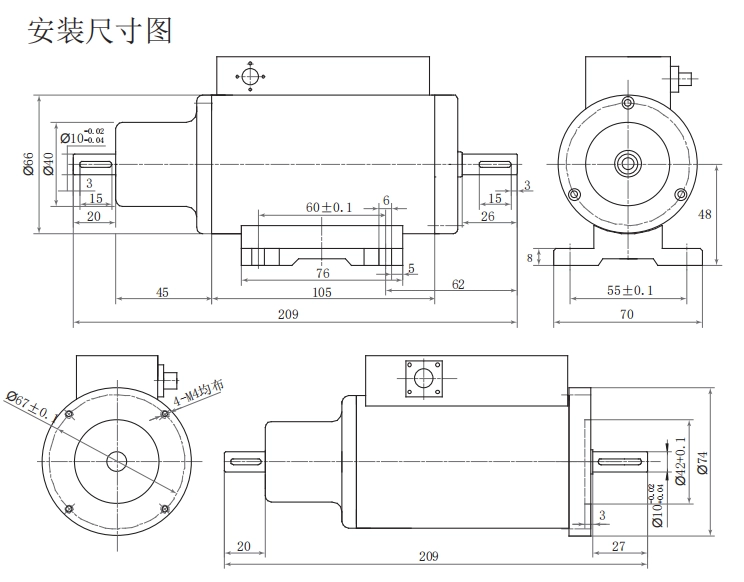

Installation Mode
