  • LZ-D01C

LZ-D01C

The portable dynamometer  can be applied to different applications:

Pressure and flow control:

Hydraulic/pneumatic systems: Equipped with pressure sensors to control the oil pressure of machine tool hydraulic stations (e.g., 3-5MPa) to prevent overloads.

Electric equipment monitoring:

Machine tool equipment: monitor cutting force through pressure sensors and control instruments to prevent overload;

Automated production lines: Cooperate with displacement sensors to control the positioning accuracy of robotic arms (e.g., ±0.01mm), ensuring precise execution of processes such as assembly and welding.


Download Specification 3D Model Download Online Consultation

Technical features

1. Strong signal compatibility and high adaptability

2. Double optimization of measurement accuracy and stability

3. Improved convenience of operation and maintenance

Technical features

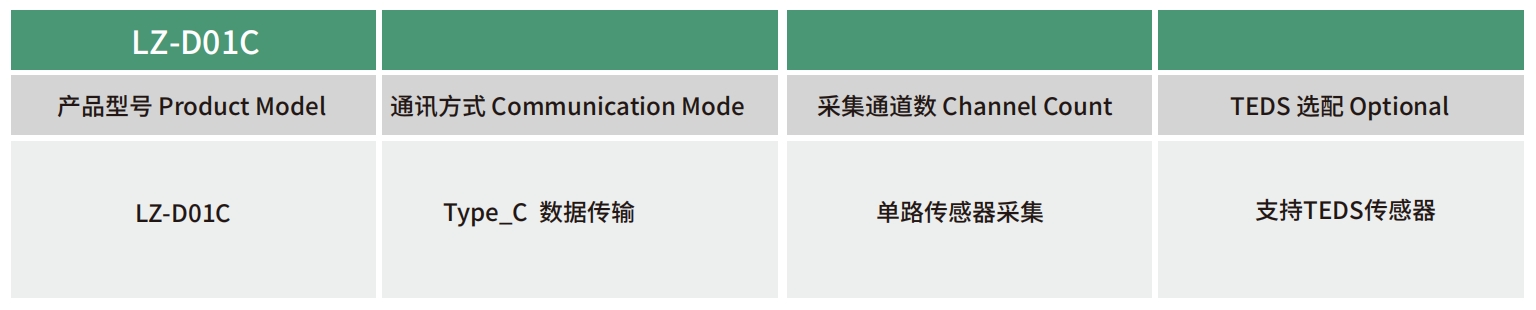

Specifications

Rated Power Supply5V DC, 0.5ABattery Capacity5000 mAH
Environment Temperature(- 10 - 60)℃Storage Temperature(- 20 - 70)℃
Humidity Range＜85% RH non-condensingSize143.5*73*21mm(Including female socket)
Display mode3.97-inch LCD touch screenCalibration FunctionDigital/Weights/TEDS/User setting/Non-linear, etc
Pulse Group ImmunityEFT-Level III (2KV Test)Total Power ConsumptionAbout 2.5W （Continuous use for 10 hours under full charge）
Sensor Bridge Voltage5V ± 1% (Fixed Bridge Voltage)Sensitivity Range± 2.4mV/V (Signal Input Range)
Signal Sampling Accuracy24bit∑-△ADC SamplingSignal Sampling Rate3.2KHz
Signal Sampling Channel1 ChannelCommunication ChannelType_C
Communication ProtocolModbusRTU

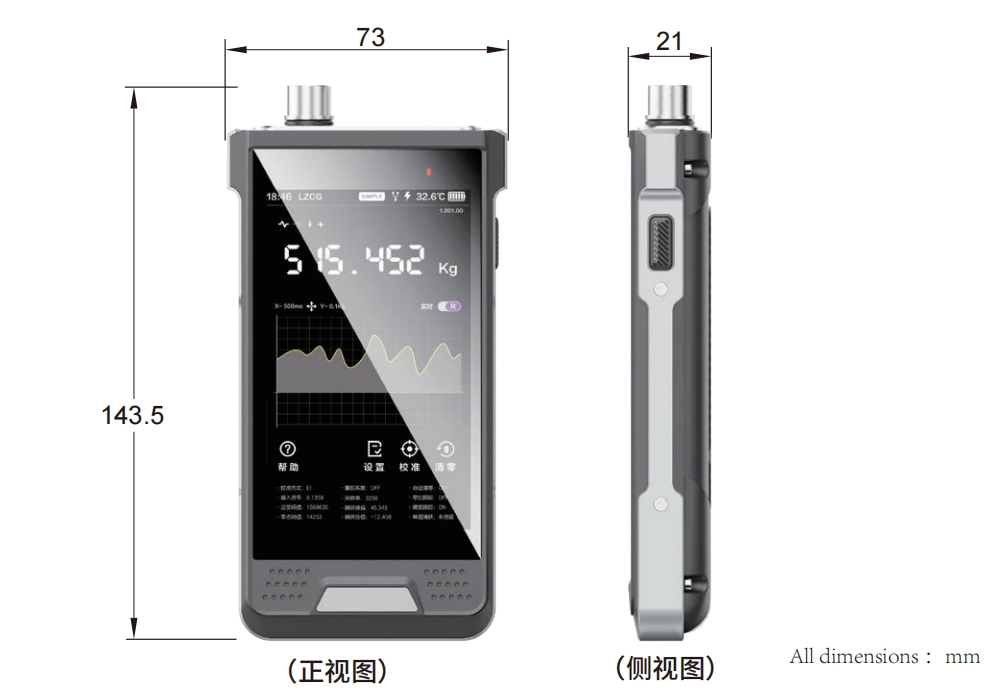

Product Dimension

Relevant Products

Applications

1.Pressure and flow control:

Hydraulic/pneumatic systems: Equipped with pressure sensors to control the oil pressure of machine tool hydraulic stations (e.g., 3-5MPa) to prevent overloads.


2.Electric equipment monitoring:

Machine tool equipment: monitor cutting force through pressure sensors and control instruments to prevent overload;

Automated production lines: Cooperate with displacement sensors to control the positioning accuracy of robotic arms (e.g., ±0.01mm), ensuring precise execution of processes such as assembly and welding.

label:
Force sensors Multi-Axis Sensors Load cell
