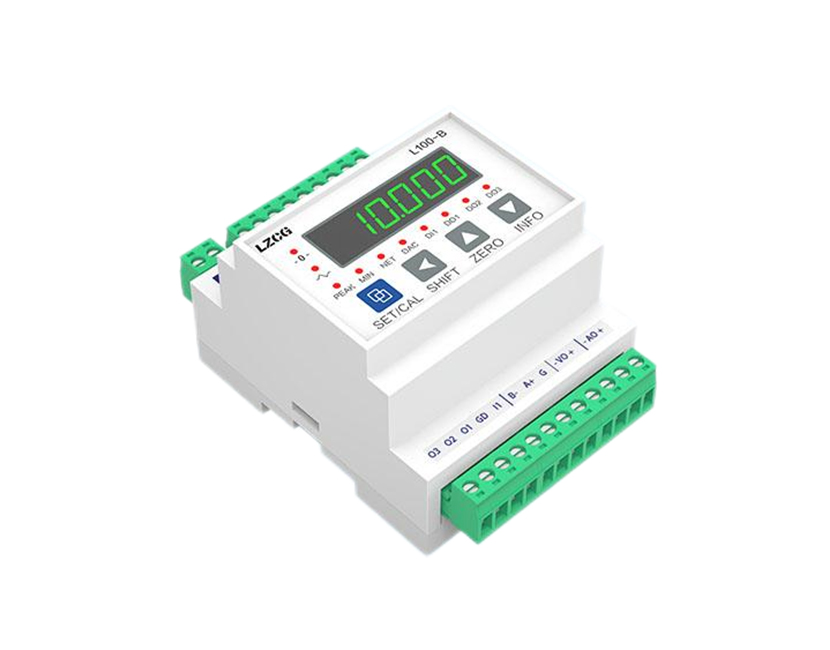

Digital Control Indicator's main function includes:
1.Comparison output, Peak capture
2.Multiple calibrations modes incl. digital/weights/TEDS/user setting/non-linear, etc.
3.Manual Zeroing (Key/DI/Communication) + Auto Zeroing (Power-On/Auto/Tracking)
1. Strong signal compatibility and high adaptability
2. Double optimization of measurement accuracy and stability
3. Improved convenience of operation and maintenance
| Rated Power Supply | 24VDC, 0.2A | Power Supply Range | (18-30) VDC (Over-Voltage Alarm) |
| Environment Temperature | (- 10-60)℃ | Storage Temperature | (- 20- 70)℃ |
| Humidity Range | ＜85% RH No Dew Condensation | Pulse Group Immunity | EFT-Level IV (4KV Test) |
| Surge Immunity | Level 4: 4.0KV | Sensor Bridge Voltage | 5V ± 1% (Fixed Bridge Voltage) |
| Sensitivity Range | ± 2.4mV/V (Signal Input Range) | Signal Sampling Accuracy | 24bit∑-△ADC Sampling |
| Signal Sampling Rate | 12.5 - 3.2K | Switching Input | 1-Channel (Configurable Function) |
| Switching Output | 3-Channel (Configurable Function) | Communication Channel | RS485+RS232 (Mutual Isolation) |
| Communication Protocol | ModbusRTU(Read/Write/Read-Only), Active Upload | Transmitter Accuracy | 16bit (Electrical Isolation) |
| Transmitting Signal | 4-20mA/0-20mA/0-5V/0-10V/±5V/±10V |
1.Pressure and flow control:
Hydraulic/pneumatic systems: Equipped with pressure sensors to control the oil pressure of machine tool hydraulic stations (e.g., 3-5MPa) to prevent overloads.
2.Electric equipment monitoring:
Machine tool equipment: monitor cutting force through pressure sensors and control instruments to prevent overload;
Automated production lines: Cooperate with displacement sensors to control the positioning accuracy of robotic arms (e.g., ±0.01mm), ensuring precise execution of processes such as assembly and welding.
