LFS-02

Core features

Compact and small: compact size, small footprint, suitable for equipment with strict installation space (such as precision instruments, small robotic arms, automation modules, etc.).

High-precision detection: With high sensitivity and linearity, it can accurately capture force value changes in real time and meet the high-precision requirements of the force control system.

Scene Adaptability: Particularly suitable for scenarios with limited installation space and requiring force detection and closed-loop control (such as touch feedback of electronic devices, force sensing monitoring of medical equipment, etc.).

Dynamic response frequency：

<900H2(LES-02)

<5001(LFS 01,LFS-01A,LFS-01B)

<100HZ(LFS-05,LFS-06,LFS-07,LFS-08,)

Download Specification 3D Model Download Online Consultation

Technical features

Compact and small: compact size, small footprint, suitable for equipment with strict installation space (such as precision instruments, small robotic arms, automation modules, etc.).

High-precision detection: With high sensitivity and linearity, it can accurately capture force value changes in real time and meet the high-precision requirements of the force control system.

Scene Adaptability: Particularly suitable for scenarios with limited installation space and requiring force detection and closed-loop control (such as touch feedback of electronic devices, force sensing monitoring of medical equipment, etc.).

Dynamic response frequency： <900H2(LES-02) <5001(LFS 01,LFS-01A,LFS-01B) <100HZ(LFS-05,LFS-06,LFS-07,LFS-08,)

Specifications

Capacity	0 ~ 250, 500g 0~1, 2, 3, 5, 10, 20, 30, 50, 100, 200kg	Input lmpedance	350 ± 15Ω
Material	Aluminium Stainless Steel	Output lmpedance	350 ± 5Ω
Rated Output	2.0 ± 10% mV/V	Insulation	≥5000MΩ/100VDC
Zero Balance	± 2 % F.S.	Recommended Excitation	3 ~ 10V
Non-linearity	± 0.05% F.S.	Operating Temp. Range	- 20 ~ 80 ℃
Hysteresis	± 0.05% F.S.	Compensated Temp. Range	- 10 ~ 60 ℃
Repeatability	± 0.05% F.S.	Safe Overload	150%
Creep (30min)	± 0.05% F.S.	Maximum Overload	500%
Temp. Effect on Output	± 0.05% F.S. / 10℃	Cable Specifications	Ø 2 x 3m
Temp. Effect on Zero	± 0.05% F.S. / 10℃	Protection Class	IP65
TEDS Available

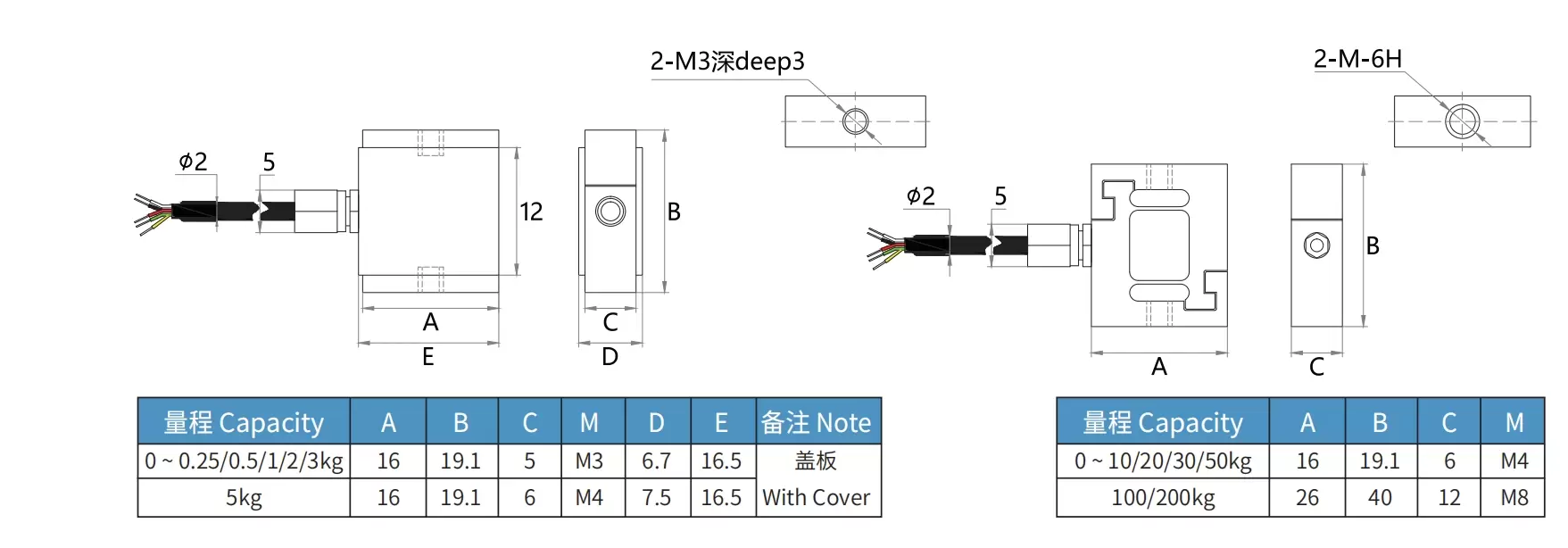

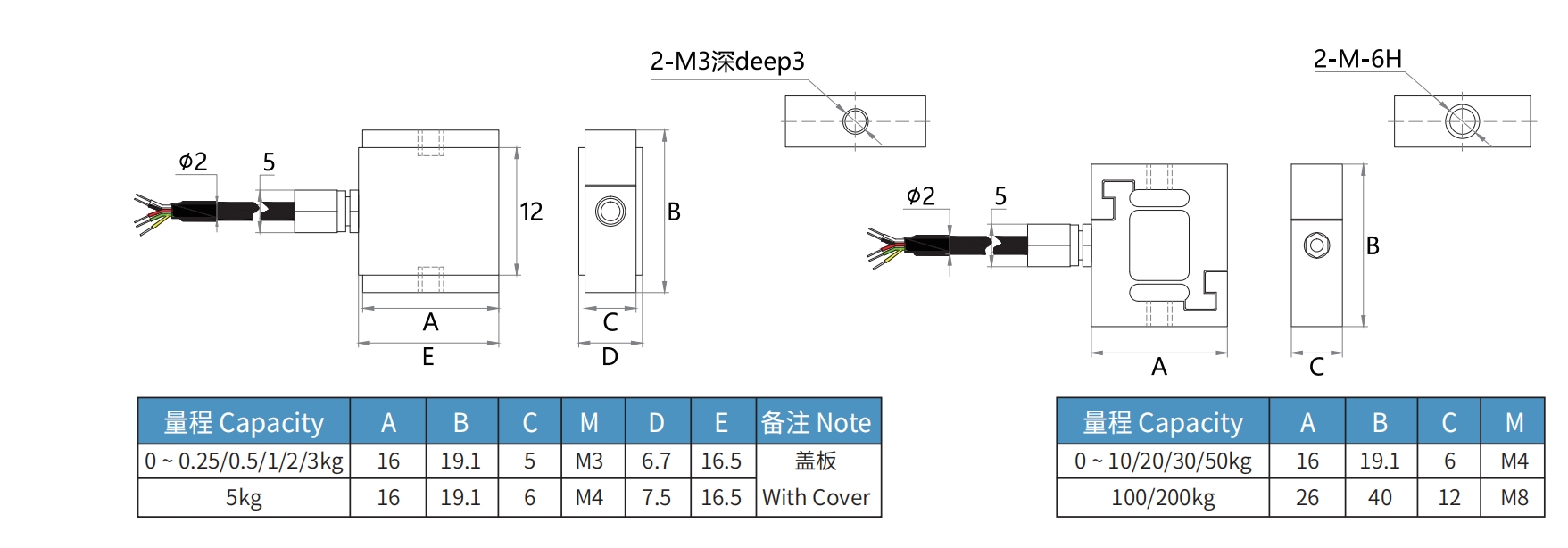

Product Dimension

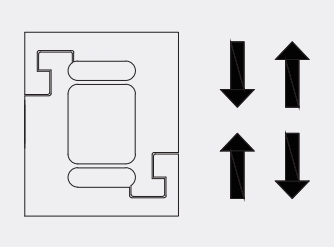

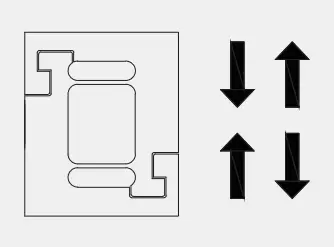

Load Direction

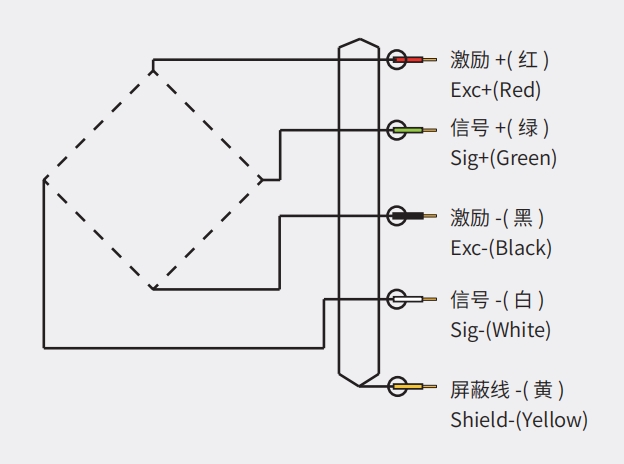

Wiring Diagram

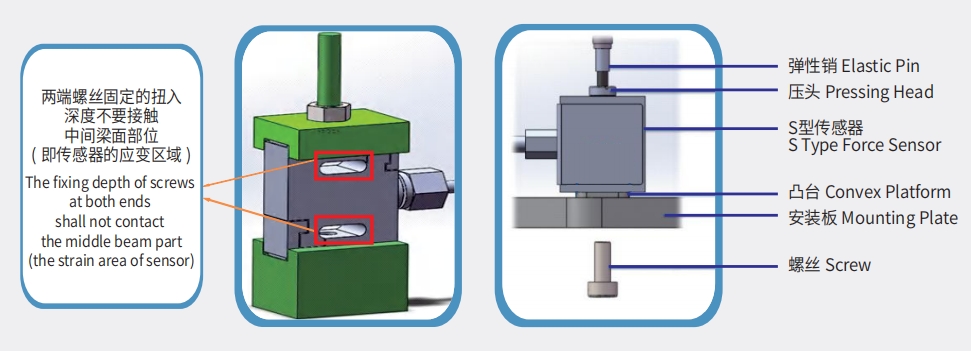

Installation Mode
Screw Mounted

Applications

1、Consumer electronics and electronic industries

Force measurement and control in production of screen mounting, battery mounting, function key assembly (like HOME button etc), seal performance testing, key testing. Force measurement of insertion force, strip tension, pressure equipment,welding and assembly stress strength testing, etc.

2、Medical Industries

Force measurement and control of Injection bump, and medical bed.

3、Robots

Grasping force measurement and control of robot fingers,compression or tension, press in force measurement and control.

4、Auto Industry

Assembling force, press-in force,polishing and welding force measurement and control.

5、Tension Test of Textile, paper making, wire.
