LFE-02

Core advantages:

Ring-Shaped Force Sensor can be directly connected to the screw or force-bearing bars to simplify installation and reduce errors;

Strong anti-eccentric load capacity (multiple spokes balance eccentric loads) and high precision;

Suitable for force detection and control on equipment with limited space.

Dynamic response frequency is less than 300Hz.

Core Form: Characterized by hollow structure,the overall shape is a closed ring with a hollow area in the middle.It adopts a spoke-type or variable-section diaphragm box structure, which is compact and small in size, with a through hole or thread in the center.

Download Specification 3D Model Download Online Consultation

Technical features

1.Ring-Shaped Force Sensor can be directly connected to the screw or force-bearing bars to simplify installation and reduce errors;

2.Strong anti-eccentric load capacity (multiple spokes balance eccentric loads) and high precision;

3.Suitable for force detection and control on equipment with limited space.

4.Dynamic response frequency is less than 300Hz.

Specifications

0 ~ 5, 10, 20, 30, 50kg

Capacity	Input lmpedance	350 ± 10Ω
Material	Stainless Steel	Output lmpedance	350 ± 5Ω
Rated Output	1.5 ± 10% mV/V	Insulation	≥5000MΩ/100VDC
Zero Balance	± 2 % F.S.	Recommended Excitation	2.5 ~ 5V
Non-linearity	± 0.5% F.S.	Operating Temp. Range	- 20 ~ 80 ℃
Hysteresis	± 0.5% F.S.	Compensated Temp. Range	- 10 ~ 60 ℃
Repeatability	± 0.5% F.S.	Safe Overload	150%
Creep (30min)	± 0.1% F.S.	Maximum Overload	200%
Temp. Effect on Output	± 0.1% F.S. / 10℃	Cable Specifications	Ø 2x 3m
Temp. Effect on Zero	± 0.1% F.S. / 10℃	Protection Class	IP65
TEDS Available

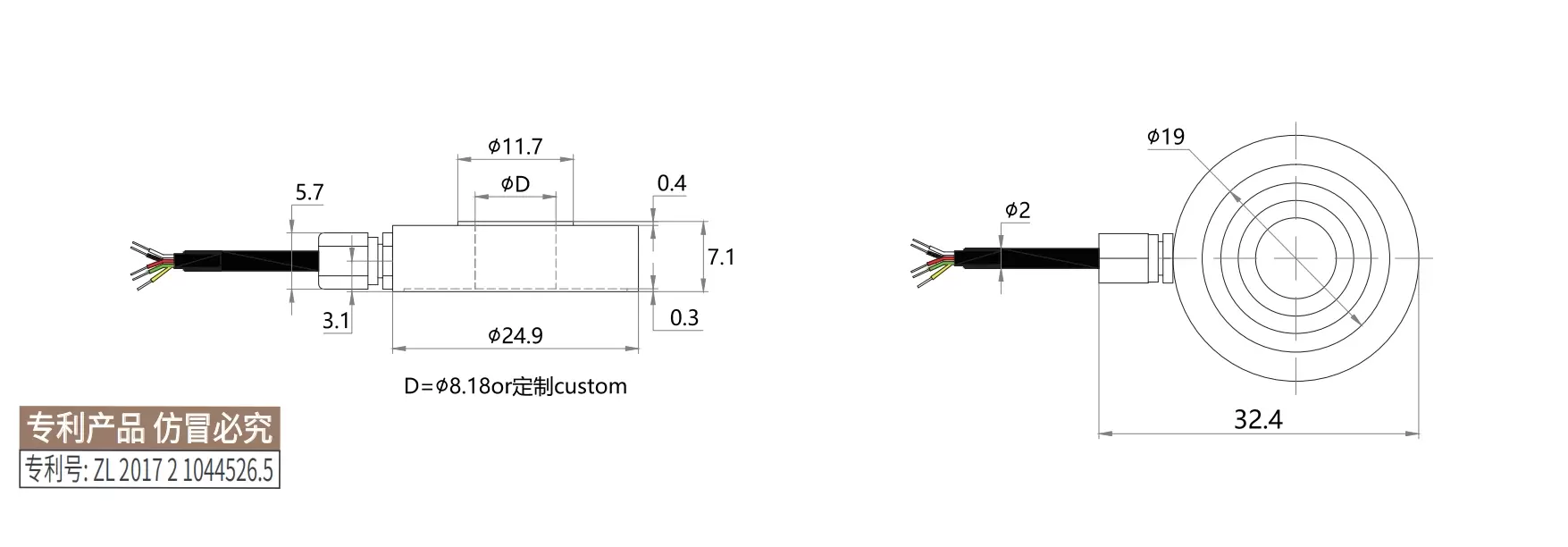

Product Dimension

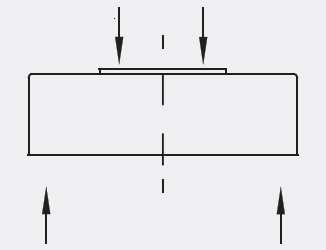

Load Direction

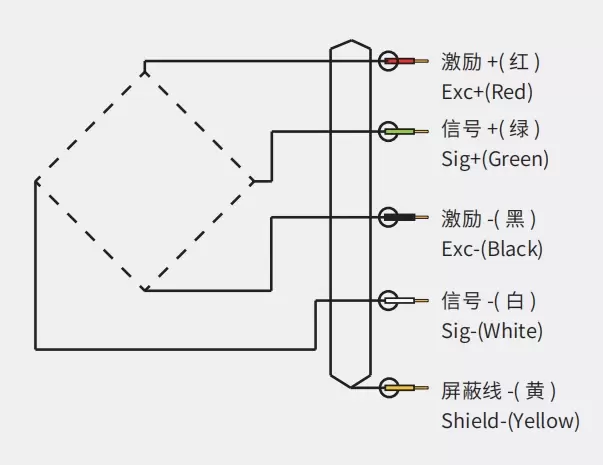

Wiring Diagram

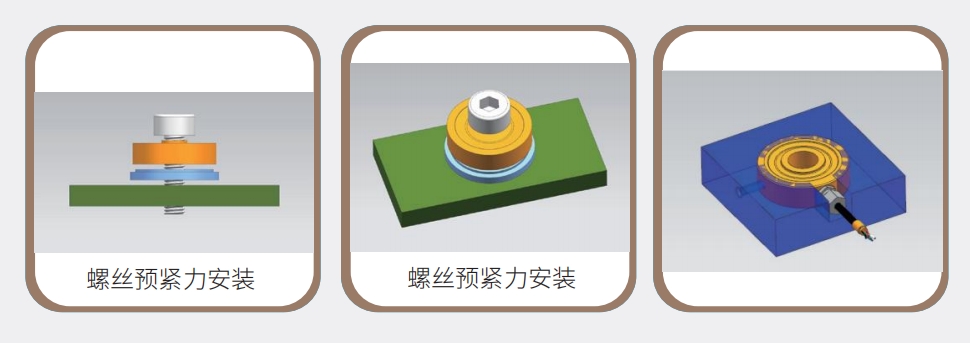

Installation Mode
Screw Mounted

Applications

1、Consumer electronics and electronic industries

Force measurement and control in production of screen mounting, battery mounting, function key assembly(like HOME button etc), seal performance testing,key testing. Force measurement of insertion force,strip tension, pressure equipment, welding and assembly stress strength testing,etc.

2. Medical industries

Force measurement and control of Injection bump, and medical bed.

3、Robots

Grasping force measurement and control of robot fingers, compression or tension, press in force measurement and control.

4、Auto Industry

Assembling force, press-in force,polishing and welding force measurement and control.It can meet the dynamic force monitoring needs of conventional industrial automation, medical equipment and other scenarios (such as periodic loading and uniform motion force detection)
