LFC-13E3

Structural Features: The force - bearing surface is a flat structure, which can be directly attached to the measured objects (such as yarns, thin films, micro - parts), reducing the force transmission error caused by the contact mode.

Features:

1. Compact structure, small size, can adapt to narrow spaces (such as chip welding stations, micro-manipulator end).

2. High precision and high sensitivity to meet micro-force requirements. The sensitive element converts the tiny force value into a detectable electrical signal through the local deformation amplification effect of the elastic body, and the response speed is fast.

3. Multi-directional force measurement capability to adapt to complex scenarios: In the assembly of micro parts, it can real - time monitor the lateral offset force and vertical pressure when parts are in contact, avoiding assembly misalignment.

Download Specification 3D Model Download Online Consultation

Technical features

1. Compact structure, small size, can adapt to narrow spaces (such as chip welding stations, micro-manipulator end).

2. High precision and high sensitivity to meet micro-force requirements. The sensitive element converts the tiny force value into a detectable electrical signal through the local deformation amplification effect of the elastic body, and the response speed is fast.

3. Multi-directional force measurement capability to adapt to complex scenarios: In the assembly of micro parts, it can real - time monitor the lateral offset force and vertical pressure when parts are in contact, avoiding assembly misalignment.

Specifications

Capacity	0 ~ 1, 5, 10, 20, 30, 50kg	Intput lmpedance	350 ± 10Ω
Material	Stainless Steel	Output lmpedance	350 ± 5Ω
Rated Output	2.0 ± 10% mV/V	Insulation	≥5000MΩ/100VDC
Zero Balance	± 2 % F.S.	Recommended Excitation	3 ~ 5V
Non-linearity	Operating Temp. Range	Operating Temp. Range	- 20 ~ 80 ℃
Hysteresis	± 0.05% F.S.(0 ~20kg) / ± 0.1% F.S.(30 ~50kg)	Compensated Temp. Range	- 10 ~ 60 ℃
Repeatability	± 0.05% F.S.(0 ~20kg) / ± 0.1% F.S.(30 ~50kg)	Safe Overload	150%
Creep (30min)	± 0.1% F.S.	Maximum Overload	200%
Temp. Effect on Output	± 0.1% F.S. / 10℃	Cable Specifications	Ø 2 x 3m
Temp. Effect on Zero	± 0.1% F.S. / 10℃	Protection Class	IP50
TEDS Available

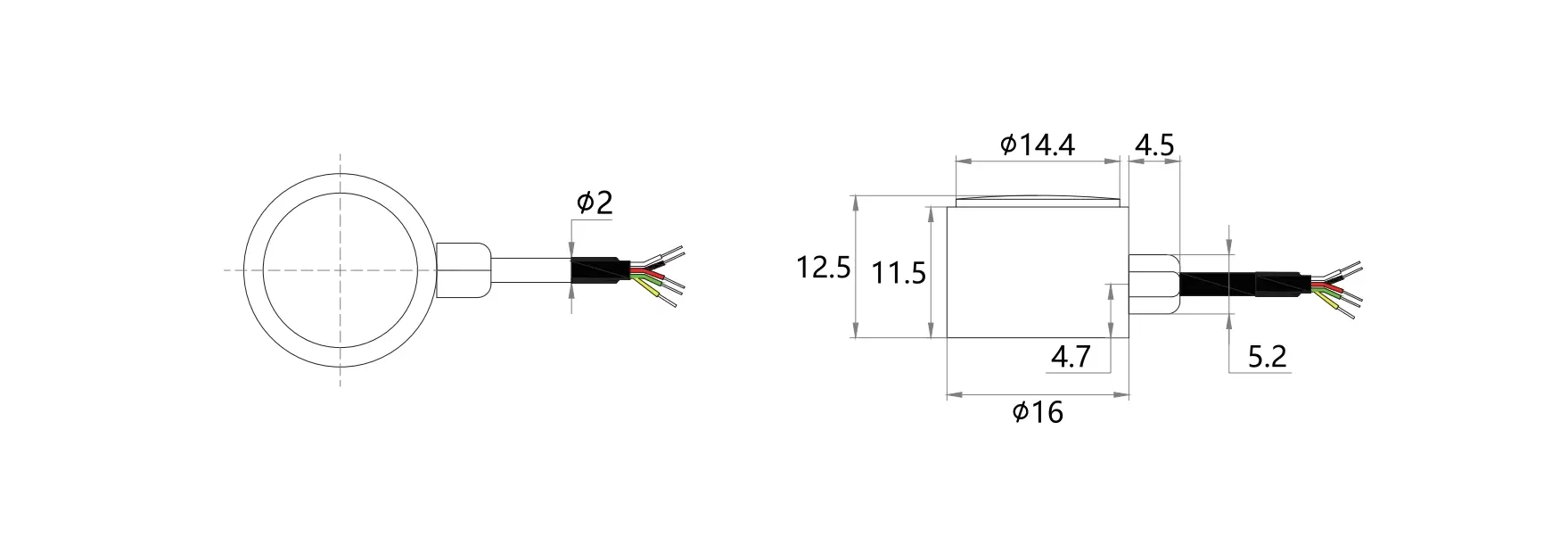

Product Dimension

LFC-13E3 Product Dimension

Load Direction

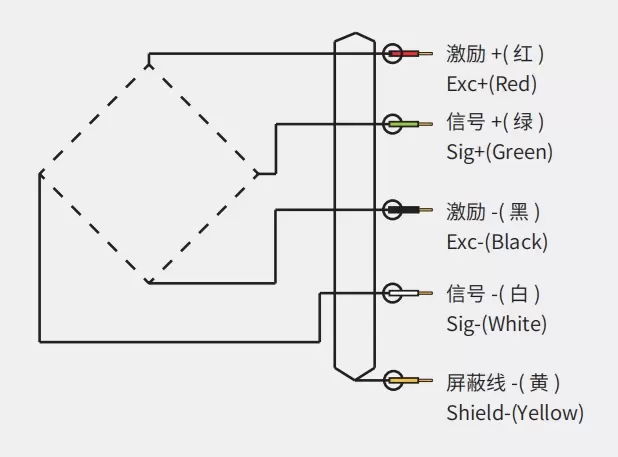

Wiring Diagram

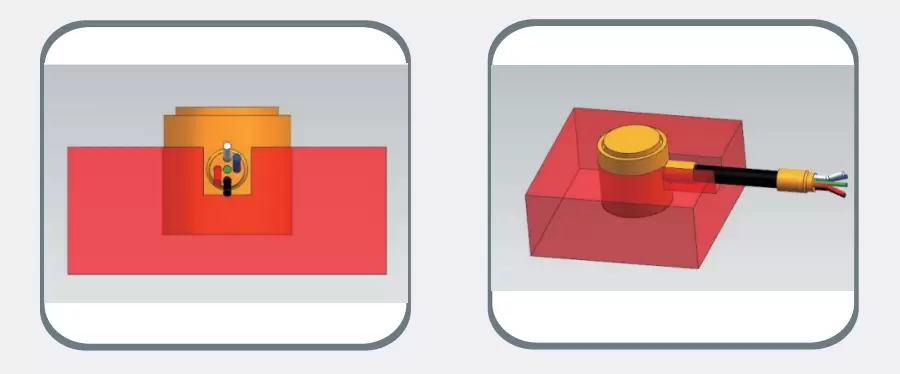

Installation Mode
Slot Mounted

Applications

1. Consumer electronics and smart devices: Touch screens and touch-control devices: Used to detect the size and distribution of touch pressure,improving the interaction accuracy of touch screens (such as the 3D touch function of smartphones and tablets).

2.Wearable devices: In smart bracelets and watches, monitor the user's key press force and gesture pressure, or are used them for health monitoring (such as grip strength test to evaluate muscle status).

3.Small household appliances: For example,the buttons of coffee machines and smart door locks adjust operation feedback by sensing the pressing force (such as different pressing forces corresponding to different functions).

4.Industrial Automation and Precision Manufacturing

5.Micro - part inspection: Used to detect the compressive strength and insertion - extraction force of small parts (such as screws and connectors) to ensure that product quality meets standards.

6.Automobile and Transportation Field

7.Safety Testing: In automobile collision tests, the force of small parts (such as seat belt buckles and airbag sensors) is measured to optimize safety design.
