LF606F-D65

A multi-dimensional force sensor is a precision device that can accurately measure forces in multiple directions in space (such as forces on the X, Y, and Z axes and moments around the axes) at the same time. It achieves synchronous detection of multi-dimensional force signals through elastic body deformation transformation, strain gauge signal conversion, and decoupling algorithm processing.

Features:

Multi-dimensional synchronous measurement；

Anti-interference and low coupling；

Wide adaptability；

Download Specification 3D Model Download Online Consultation

Specifications

Capacity	X: 0 ~ 20/40/50/100 N Y: 0 ~ 20/40/50/100N Z: 0 ~ 20/40/50/100N Mx: 0 ~ 1/2/4N.m My: 0 ~ 1/2/4N.m Mz: 0 ~ 1/2/4N.m	Material	Aluminum alloy
Non-linearity	± 0.2% F.S.	Hysteresis	± 0.2% F.S.
Repeatability	± 0.2% F.S.	Zero Balance	± 5 % F.S.
Long-tern crosstalk error	± 3 % F.S.	Temp. Effect on Zero	± 0.1% F.S. / 10℃
Temp. Effect on Output	± 0.1% F.S. / 10℃	Insulation	≥5000MΩ/100VDC
Recommended Voltage	5 ~ 10VDC	Operating Temp. Range	- 20 ~ 80 ℃
Hysteresis	± 0.1% F.S.	Compensated Temp. Range	- 10 ~ 60 ℃
Safe Overload	300%	Protection Class	IP65
Cable Specifications	φ2x0.5m+φ5.5x2. 5m+14PIN插头

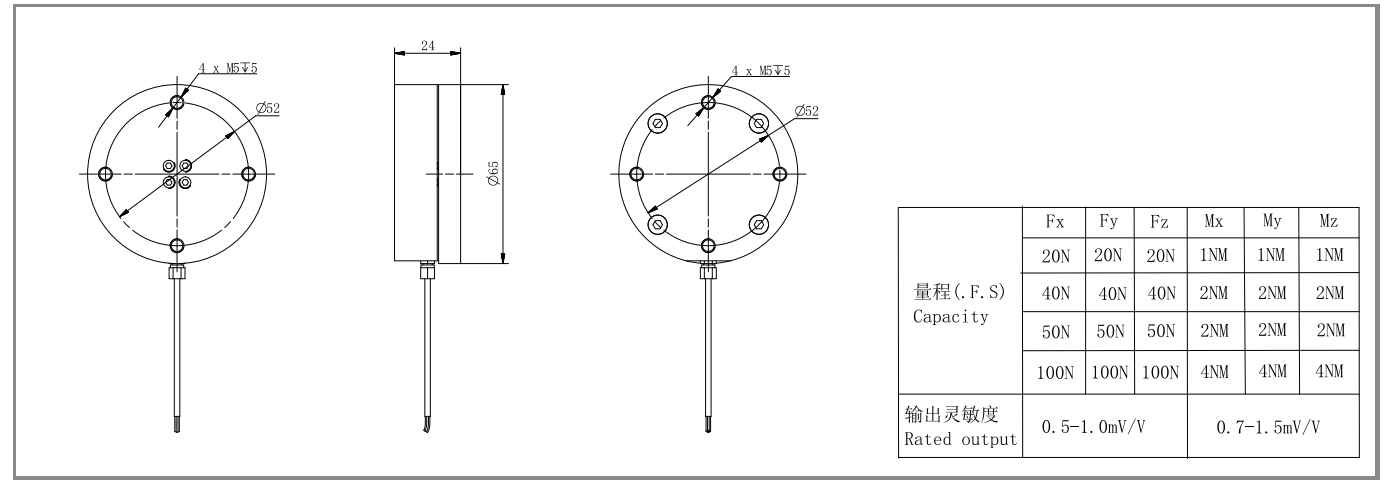

Product Dimension

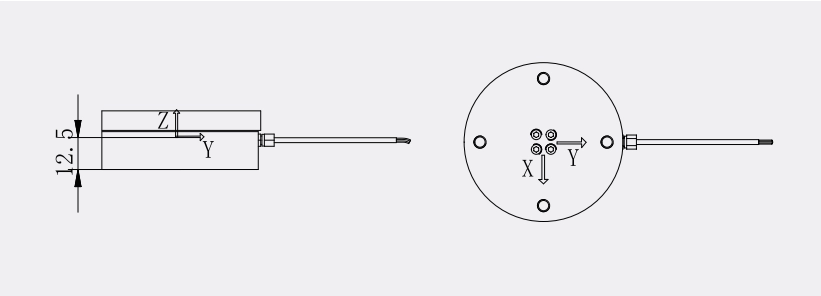

Load Direction

Writing Diagram

Installation Mode

Applications

1.Industrial robots and automation: Sensors are installed at the end of the robotic arm to sense the gripping force and assembly force (such as bearing press fitting and screw tightening) in real time, achieve flexible operation, and avoid workpiece damage or assembly errors.

2.Automobile R&D testing: Used for chassis and suspension system force testing, steering wheel torque detection, and force distribution analysis in collision tests to optimize vehicle safety and handling.

3.Precision manufacturing and quality inspection: In microelectronics assembly (such as chip welding) and material mechanics testing, monitor tiny forces and torques to ensure process accuracy.

4.Aerospace: Used for force testing of aircraft components (such as engines and landing gear), simulating force distribution under extreme working conditions, and ensuring equipment reliability.
